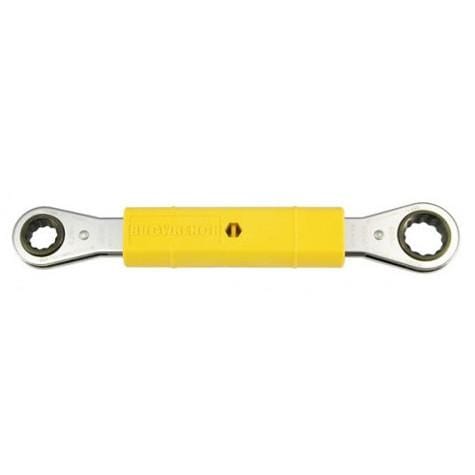

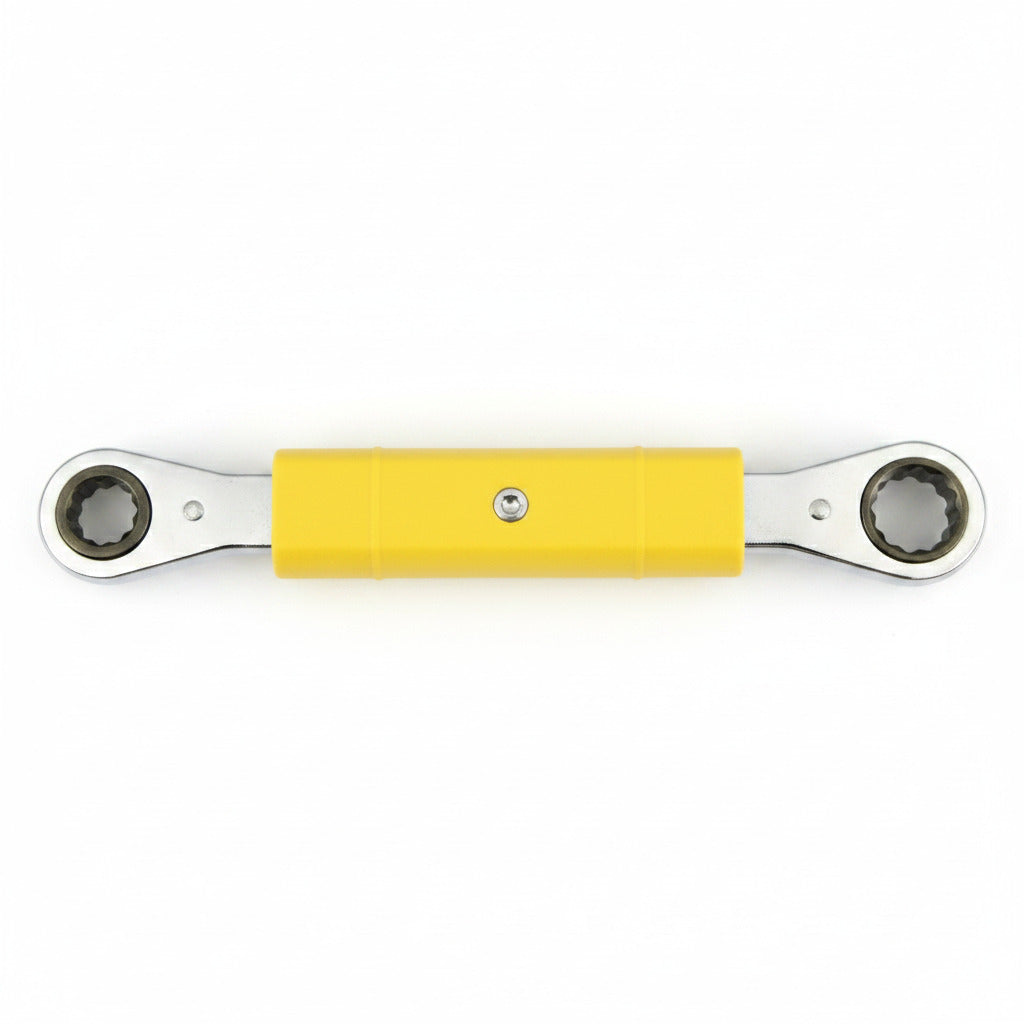

Rauckman BugWrench Insulated Box Wrench - BW2234

Rauckman Insulated BugWrench

Rauckman Insulated box wrench combinations provide unique lineworker wrenches that allow line workers to carry one tool that will install hundreds of different connectors.

The handle is designed with a visual and physical indicator permanently molded (in a shape of a rib) in 2 positions on the handle. This rib provides an indication of the “Isolated Area” of the handle. Holding the wrench behind the appropriate rib, in the “Isolated Area” provides a 1,000 Volt Rating between the metal working end and the operator’s hand. Independent electrical tests were performed on a BW-223 wrench verifying that the electrical performance of the BugWrench handle far exceeds the standard published “Leakage Current” (at various voltages) and “Dielectric Strength” requirements.

• The insulated box wrench handle is formulated of a high strength and high dielectric polymer.
• A see-through port in the center of the handle to confirm that the two ends are not electrically connected.
• The unique design of the handle provides twice the Metal-to-Metal Electrical Isolation compared to other brands (*based on tests on model BW-223).
• The handle comes in a High-Visibility yellow color.

SKU: BW-2234
