Huskie Tools 12 Ton Remote Hydraulic Crimping Head - EP-410H
Huskie Tools 12 Ton Remote Hydraulic Crimping Head - EP-410H
-
SKU:
SKU:EP-410H
- |
-
Brand:
Huskie Tools
- |
-
Type:
Cable Cutter
Description
Description

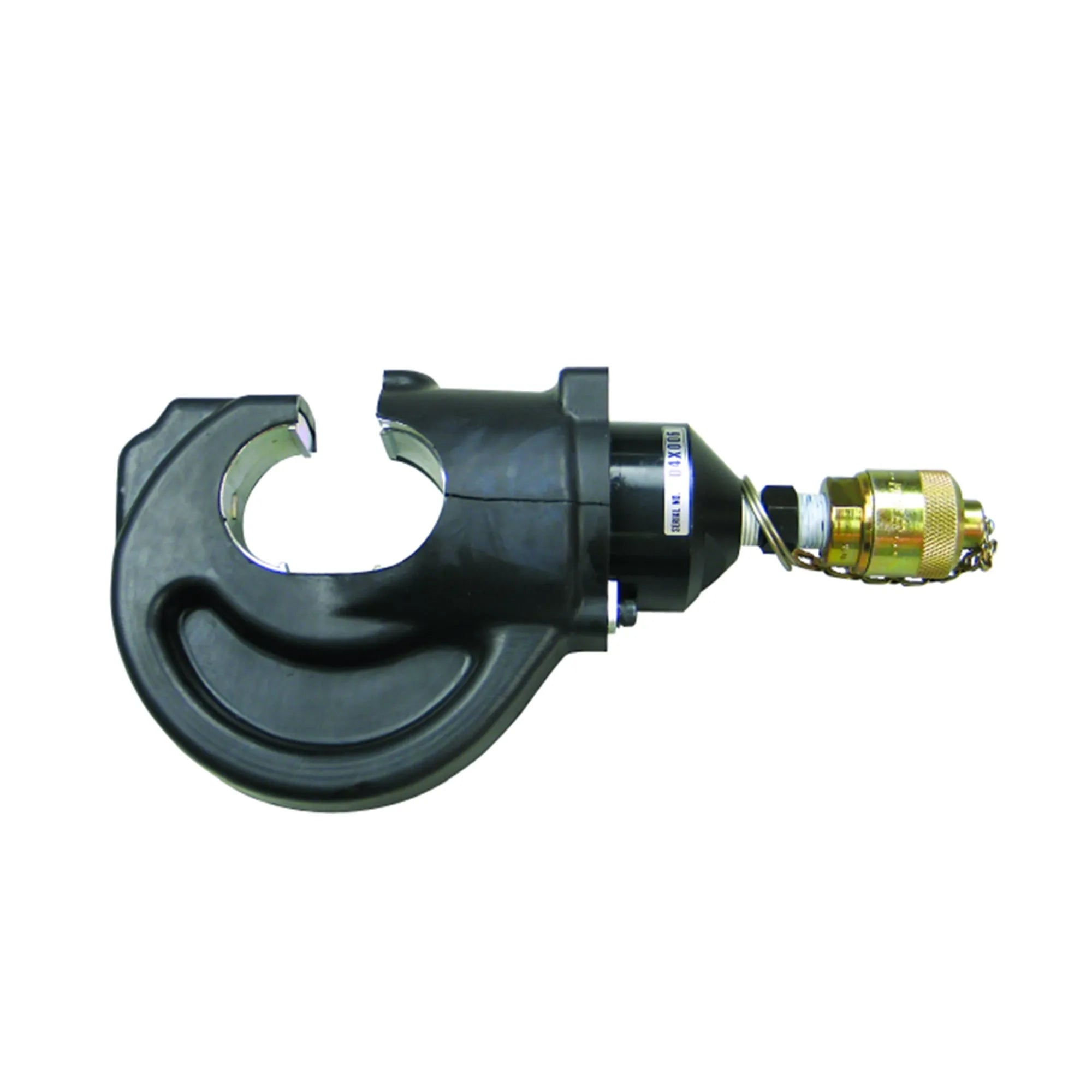

12 Ton Remote Hydraulic "C" Crimping Head for U Type Dies
EP-410H
The EP-410H is a traditional C-head with a one-inch jaw opening. It will accept all "U"" type dies currently used in 12 ton tools on today’s market. A 10,000 psi external pump is required to operate the C-head. The output pressure is 12 Ton when the pump is set at 10,000 psi. After a compression is made on a lugor sleeve an internal ram spring retracts the jaw when the pump pressure is relieved. The tool is supplied with a standard 3/8" male screw type coupler but can be fitted with an opposite female coupler if requested. Carrying case included. NOTE: When using any of these high-pressure tools always use 10,000 psi rated non-conductive hose (NC-16 series).
- 12-Ton Hydraulic Crimping Output :Delivers robust compression force for consistently tight crimps on large copper and aluminum lugs and splices used in utility and industrial installations.
- Standard “U”-Type Die Compatibility: Accepts all industry-standard U-type dies for 12-ton tools, giving crews flexibility to match die sets across jobs without needing proprietary tooling.
- Generous 1″ Jaw Opening: Allows easy placement and alignment of connectors for quicker setup and improved workflow on both overhead and underground applications.
- Remote Hydraulic Operation (10,000 psi): Works with any standard high-pressure hydraulic pump, supplying continuous power without concern for battery life — ideal for repetitive or high-volume crimping tasks.
- Protective Rubber Boot & Rugged Construction: The rubber boot shields the C-head from damage during use, while the durable build stands up to harsh jobsite environments, extending tool life and reliability.
SKU: EP-410H
