Hastings Load Pick-Up Tool Fiberglass Load-break Studs-6605

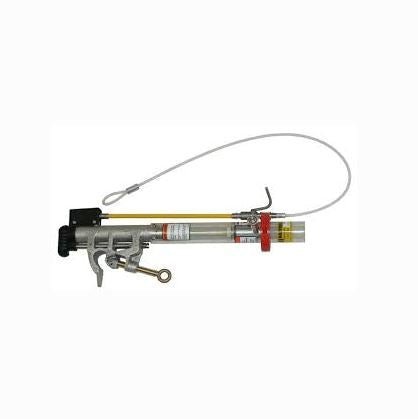

Hastings Load Pick-Up Tool

Self-contained w/ cocking tool, firing lanyard and safety latch. Clear plastic housing below the head. Can be installed with a shot-gun stick or with rubber gloves.

Two models available
Load Pick Up Tool for installation on a cable assembly (clamp and cable sold separately)
Load Pick Up Tool with stud to utilize your ready made jumpers
• Both models have a nominal rating of 27KV*
Current Rating 300 Amps*
Note: While the maximum rating for each model is stated above, the actual rating will be the lesser
of these values, or of the rating of the components used with the Load Pick Up Tool. If 15KV jumper
cable is being used, the entire assembly will be rated at 15KV. If the jumper cable is less than 2/0
AWG, the current rating will be reduced accordingly.
• Can be installed with a shotgun stick or with rubber gloves, in accordance with your company’s safe
work practices
• Both tools come completely self contained with cocking tool, firing lanyard, and safety latch
• The head casting is aluminum alloy and also serves as a storage port for the cocking tool
• Clear plastic housing below the head casting allows for quick, easy visual inspection
• Each tool comes complete with an operating and maintenance manual
• Note: Load Pick Up Tools are not load break devices
• Note: For use on 15KV or 25KV systems only

**LEAD TIME FOR THIS ITEM IS 4-6 WEEKS**

SKU: 6605
