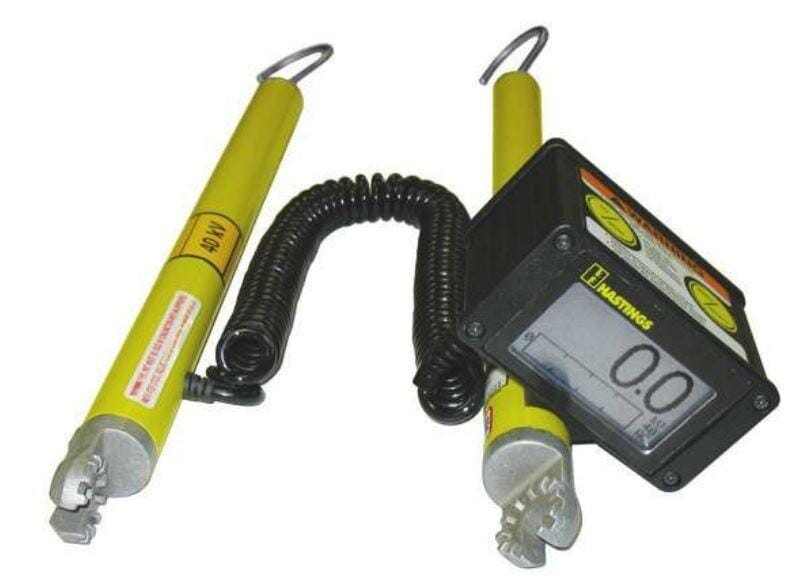

Hastings Digital Voltage Meter Phasing Stick - 6702

Hastings Digital Voltage Meter

Instrument for measuring overhead and underground voltages

• Three modes of operation AC, Hi-Pot, and DC.
• 0-40KV meter up to 240KV with resistors.
• Automatically adjust voltage display to match resistors if used.
• Hi-Pot mode for testing URD Cable.
• In Hi-Pot mode bar graph marks the peak voltage while cable is being charged.
• 0-4KV DC.
• Large easy to read digital meter.
• Meter reads to nearest 100 volts.
• Meter has lighted background that can be turned on for use in poor light conditions.
• Meter enclosure made of high quality rugged extruded aluminum.
• Auto shutdown after 40 minutes if no voltage is detected.
• Long battery life from three AA’s.
• Auto self test and battery check during start up.
• The coiled, self retracting cable is 16” retracted and 10’ when fully extended.
• Unit includes: Digital volt meter, conductor hooks, carry case, batteries, and instructions.

Product Number: 6702
