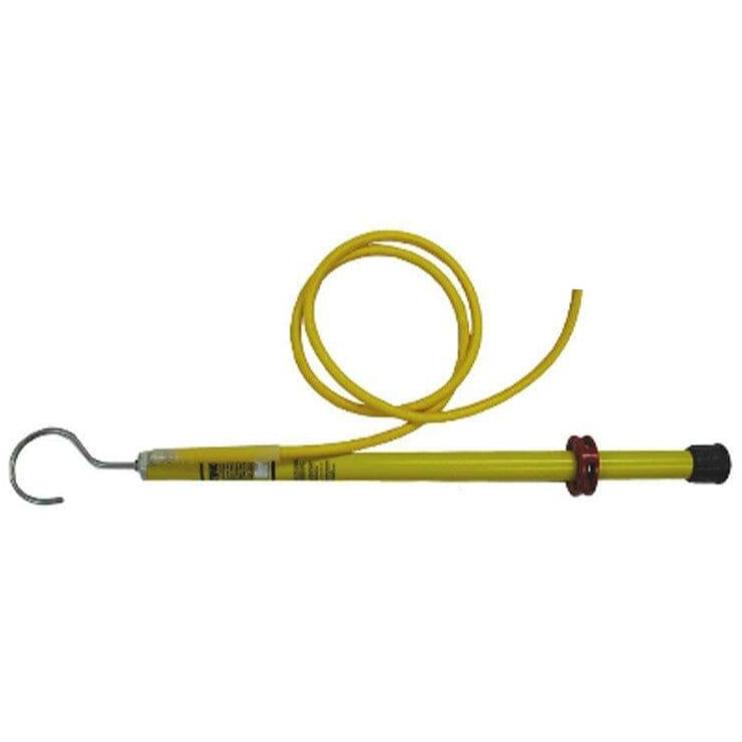

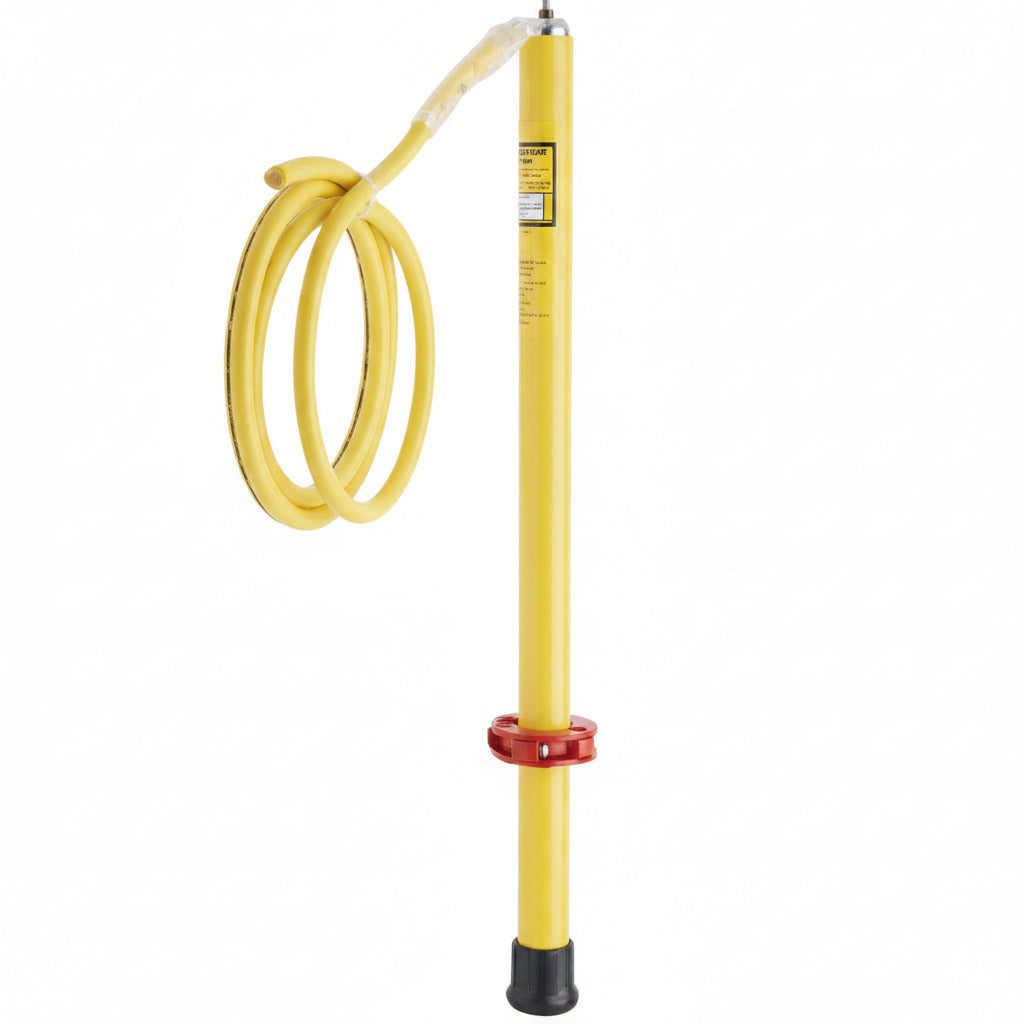

Hastings Capacitor Discharge Tool - HAS1004

Hastings Capacitive Discharge Tool

Capacitor Discharge Tool - 2’ Fiberglass pole with 6’ grounding 2.7 Lead (CLAMP NOT INCLUDED)

• The capacitor discharge tool is designed to safely drain the capacitive charge after the circuit is de-energized
• An optional add on resistor to limit discharge current is available
• Factory assembled to include the following components: Fiberglass Pole with hand guard, 1/4” Stainless
Steel Hook with a 1 3/4” opening, #2 Str. Copper Grounding Cable with safety yellow neoprene jacket, 2
hole Tin Plated Copper Lug is terminated on one end with a heat shrink sleeve
• For Custom Build - Contact factory with required clamp, length of fiberglass pole and required length of
grounding cable for a part number

**LEAD TIME FOR THIS ITEM IS 6-8 WEEKS**

SKU: HAS1004
