Demark Truck Threaded Ground Rod Driver - TG58/GR558

Demark Truck Ground Rod Driver

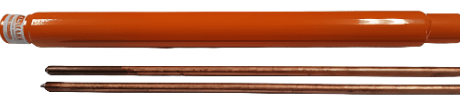

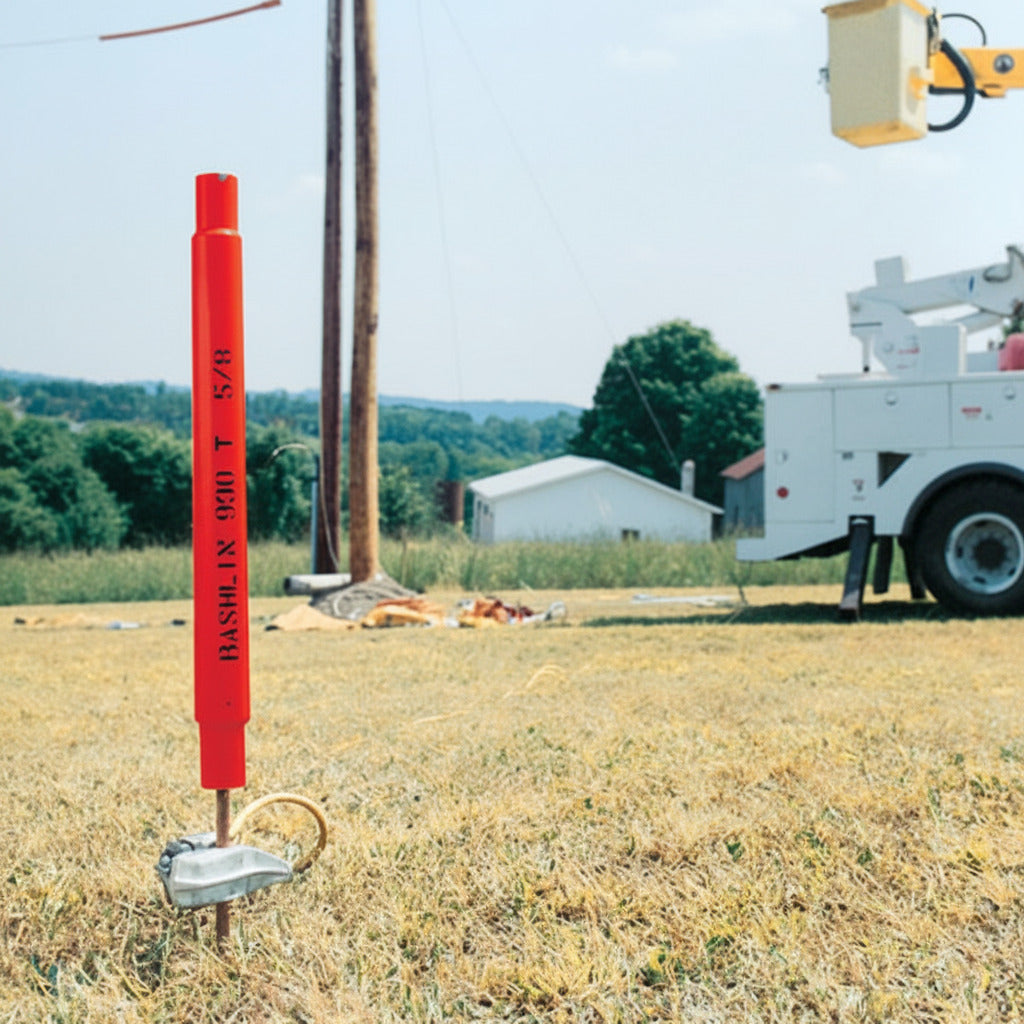

This Demark Truck Ground Rod Driver is an adaption of the patented DeMARK Model A-58 ground rod driver. The DeMARK Temporary Ground Rod Driver was designed in response to a customers request for a better means of temporary truck grounding. The TG-58 allows for easy and safe driving of a temporary ground rod and also easy removal of the rod. The TG-58 is also a quick and efficient tool for use in soil resistivity or neutral to Earth voltage testing. The exposed end of the TG-58 is internally threaded so that a standard 5/8” sectional ground rod can be threaded into the shaft. The ground rod can then be driven to the desired depth and a suitable clamp attached to the rod. When the work has been completed, simply disconnect the clamp and the rod can easily be removed. The driver has the striking force inside the unit that allows for force to be directed upward as well as downward. Removal of the rod is accomplished by impacting the driver in an upward direction. The system of temporary grounding has definite advantages over a ground auger method of grounding. The sectional ground rod (GR558) is 5' and is included.

Product Number: TG58/GR558
