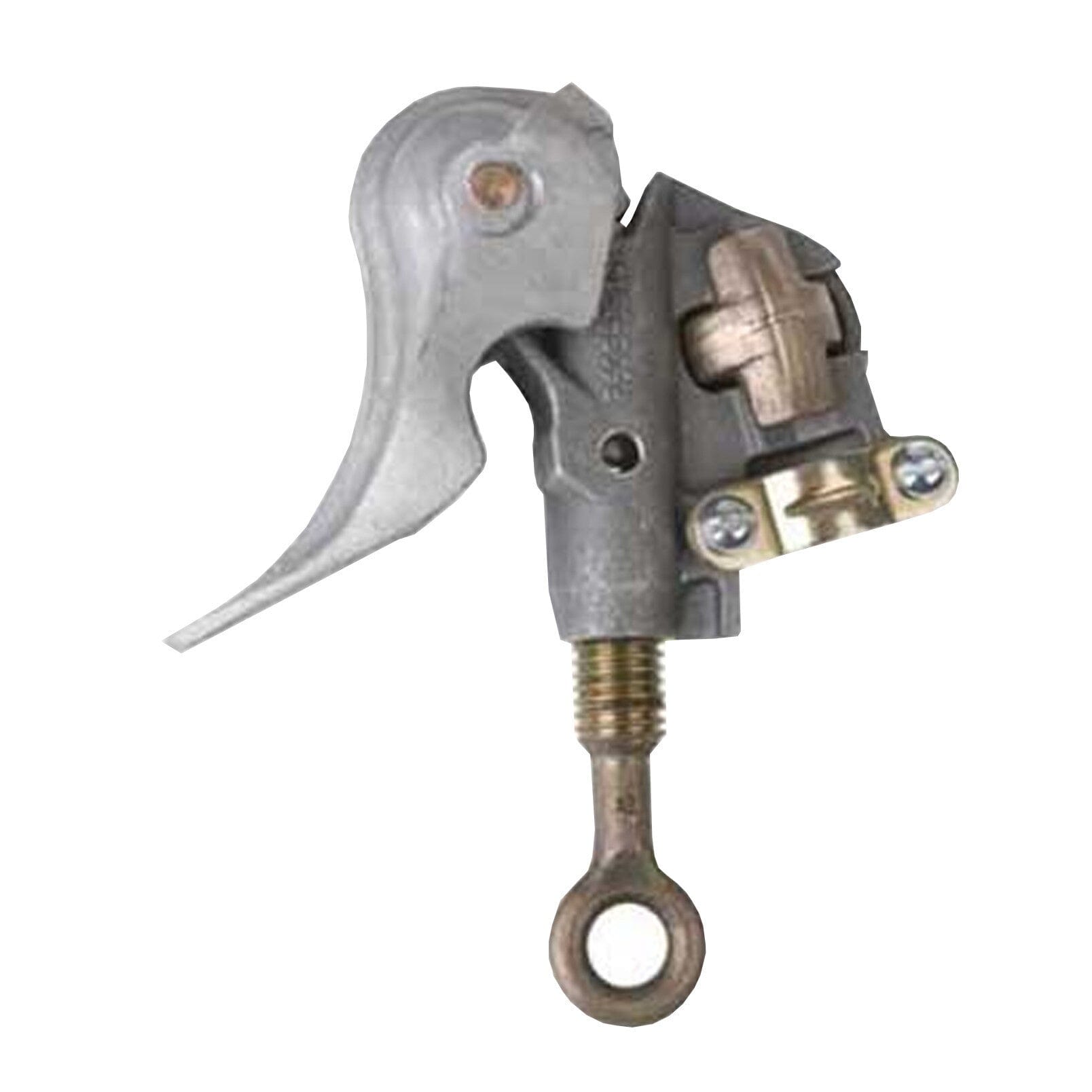

Chance - Duckbill Snap-On Ground Clamp - G3622-1


$ 95.00


ALuminum body, Smooth jaws

Bronze eyescrew with fine threads

Bronze pressure-type terminal

Electrical Ratings:

Continuous Current (AMPS): 400

Fault Current 15 Cycles (AMPS): 43,000

Fault Current 30 Cycles (AMPS): 30,000

Mechanical Ratings:

Recommended Torque (in. - lb.): 250

Main Line Range - Max.: 566 kcmil Cu. 900 kcmil ACSR (1.162")

Main Line Range - Min.: #6 Sol. Cu. (0.162")

Jumper Range - Max.: 4/0 Ground Cable with Plain Plug

Jumper Range - Min.: #2 Ground Cable with Plain Plug

ASTM Designation: Type I Class A Grade 5



Product Number: G3622-1
