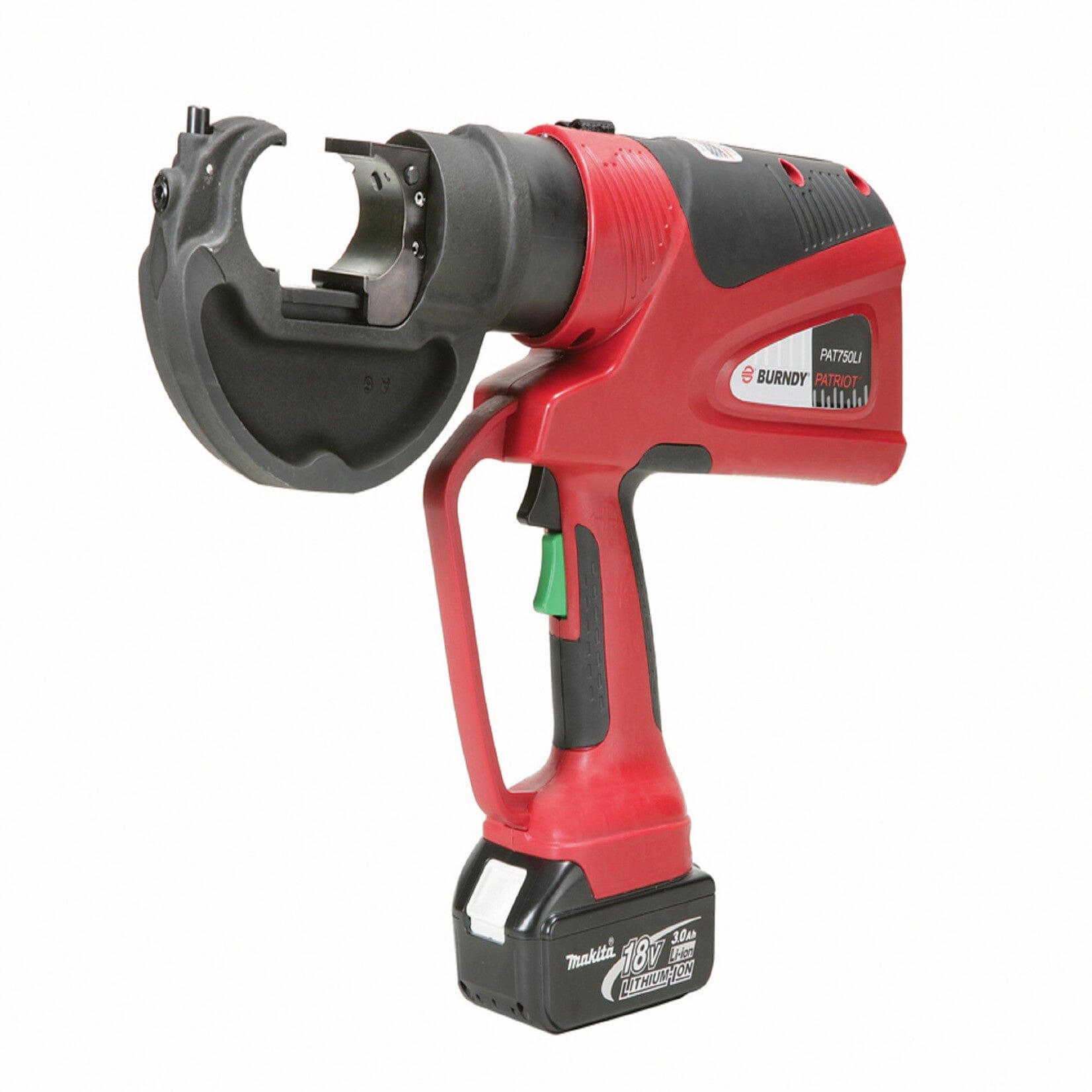

  • Burndy Patriot High-Performance Lithium-Ion Battery Actuated Crimping Tool - PAT750-LI

    SKU: PAT750-LI | Brand: Burndy | Type: Compression Tools

    Regular price $ 4,650.00 USD
    Regular price Sale price $ 4,650.00 USD
    Sale Sold out
    Shipping calculated at checkout.

    FREE SHIPPING *

    Enter discount code and spend over $75. Excludes freight items.

    100% SATISFACTION

    Easy Returns & Exchanges

    SAFE & SECURE

    Using the SSL Protocol

    Description

    Features and Benefits:

    • Refined hydraulic system for ultra performance, speed and reliability

    • Field proven electronics for ultimate reliability in the harshest environments

    • Overmolded handle for comfort and improved grip; allows for one-handed operation for advance, retract, and hold

    • 18 volt Lithium-Ion batteries provide 2.5 times more charge/discharge cycles than traditional Ni-Cd batteries and provide 430% more lifetime work

    • 30-minute charger controls current, voltage & temperature to maximize battery life. Forced air cooling fan cools the battery by forcing cool air through the battery's built-in air vents

    • State of the art crimping head design, 355° head rotation lets user get into tight areas easier

    • Allows use of standard BURNDY® dies already in use

    • Ergonomically balanced tool design eases operation

    • Durable high impact formed carrying case provides superior protection and stores all accessories

    • PAT750C-LI with rubber covered head is available

    • 5-year limited warranty on tool

    • Lifetime warranty on INFINITY DRIVE®

    • 1-year warranty on batteries and charger

    SPECIFICATIONS: Output Force: 12 tons (10.9 metric tons) Tool Weight: 15.7 lbs. (7.12 kg) With Battery Length: 15.75 (40 cm) Width: 3.5 (8.89 cm) Height: 13.5 (34.29 cm) Operating Voltage: 18 V-DC Recharge Time: 30 minutes

    FOR USE ON:

    • Tension Sleeves Copper #9 sol. - 500 kcmil Aluminum #8 sol. – 587.2 kcmil ACSR #4 – 556.5 kcmil

    • Taps Copper #14 sol. – 500 kcmil Aluminum #8 – 500 kcmil

    • Aerial Cable Copper #6 – 500 kcmil

    • Terminals & Splices Aluminum #8 – 750 kcmil Copper #8 – 750 kcmil ACSR #4 – 556 kcmil

    • HYGROUND® Copper #8 – 500 kcmil (cable/ground rod) Ground Rods 1/2 – 1 Diameter

    Product Number: PAT750-LI
