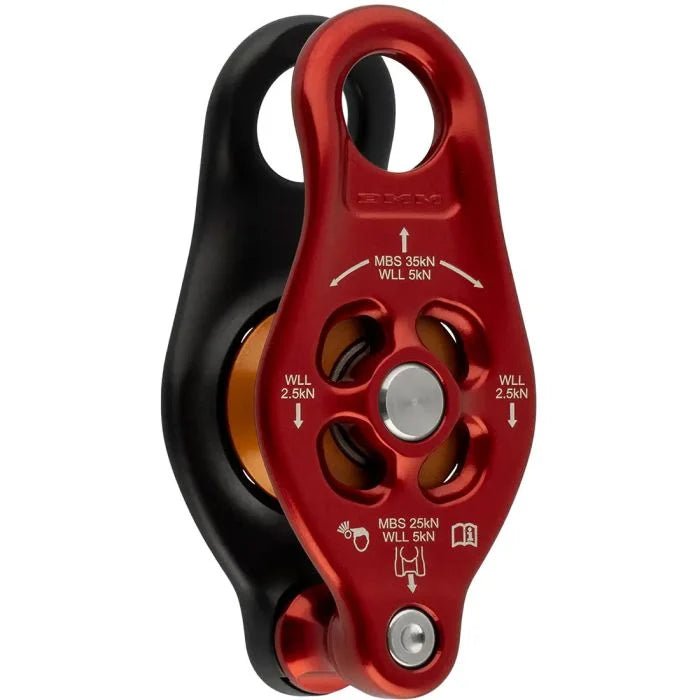

DMM Pinto Pulley - PUL131

• Full strength attachments at eye and becket provide a wide range rigging options
• Fixed sideplate design is easy to clip into and load onto tensioned ropes
• Hot forged and robust, with smooth rope and textile friendly fairleads and edges
• Connect directly in with textile components for extra versatility: increase lift height, minimise space required, or enhance tolerance to torsion
• Recessed sheave design helps rope feed smoothly from all angles
• Sealed ball bearings for high efficiency and low maintenance
• Tamperproof construction

Specifications:

• Sheave Diameter: 29mm (1-5/32")
• Max. Rope Diameter: 14mm (9/16")
• Color: Red
• Working Load Limit (WLL): 35 kN (5620 lbs)
• Minimum Breaking Strength (MBS): 5 kN (1124 lbs)
• Dimensions: 3.74" x 1.77" x 1.34"
• Certification: EN 12278
• Made in Wales
