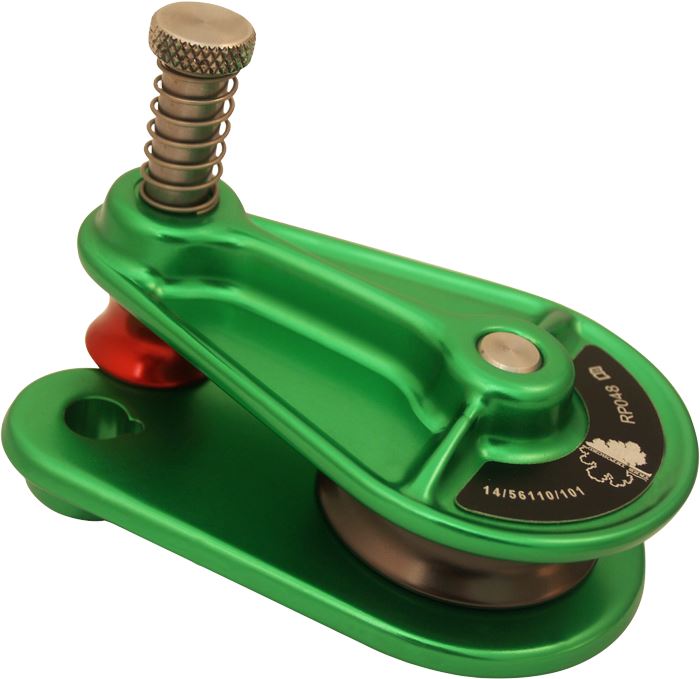

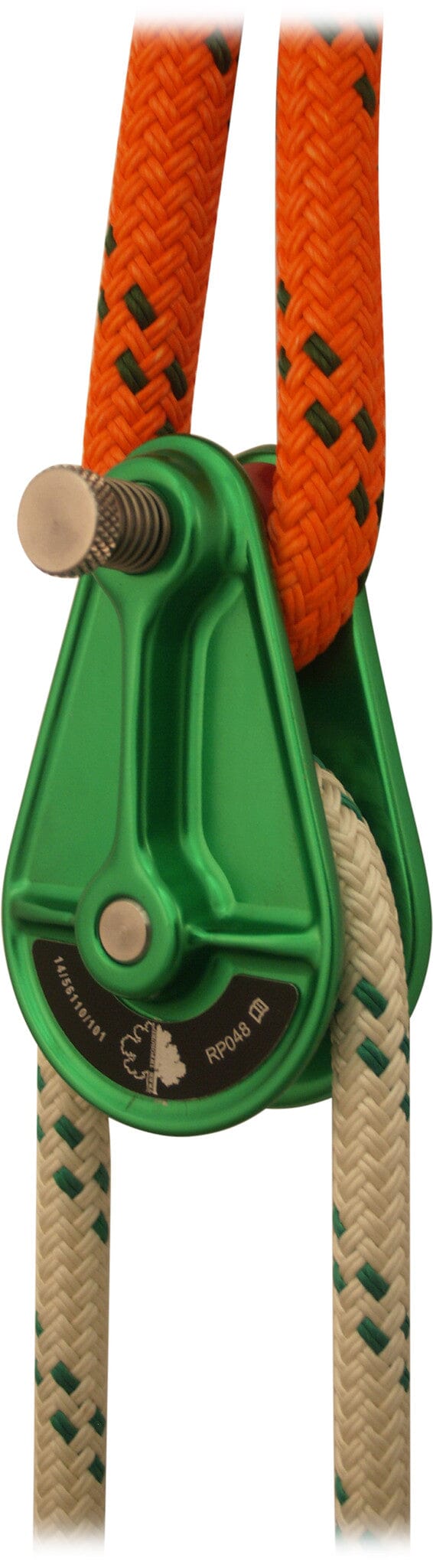

ISC Compact Rigging Pulley - RP048


  • $ 127.35

This is the newest edition to ISC's range of Industry Standard Cast Rigging Blocks for Arborists. Weighing in at only one pound, the RP048 delivers an impressive 17 kN Working Load Limit (WLL) and and 85 kN Minimum Break Strength (MBS). Designed to be used with ½” rigging lines, the RP048 is the perfect solution for overhead lowering and lightweight rigging applications. The Spring Lock mechanism allows easy opening (even while wearing gloves) for direct connections to rigging slings and the upper sheave connection point eliminates the need for a carabiner in the system. Now the small and powerful rigging block is made with Hot Forged Technology.

  • Height (mm):125
  • Height (inches):5
  • Width (mm):76
  • Width (inches):3
  • Weight (grams):490
  • Weight (ounces):16
  • Main Wheel Color: Grey
  • Fixed Wheel Color: Red
  • Body Material: Aluminium
  • Wheel Material: Stainless Steel
  • Body Finish: Anodized
  • Minimum Breaking Strength (kN):85
  • Minimum Breaking Strength (lbf):19000
  • Working Line (Grey Sheave):13mm (1/2") - 38kN (8500lbf)
  • Topping Strop (Red Sheave):16mm (5/8") - 74kN (16650lbf)

Product Number: RP048
