Bierer Service Tester - ST800-18PGN

The ST800PGN puts a high magnitude pulse between the neutral/hotleg or hotleg/hotleg for any secondary service(120V,208,277,480V). It cannot be fooled by telephone and cable television bonding often missed by continuous loading devices. 800 Amps.

The ST800PGN can perform the following functions:

• Identify bad conductor(s) from the transformer to the meter base
• Indicate integrity of neutral conductor to prevent excessive houseground currents
• Locate both hot legs and neutral at the pedestal and/or transformer blocks.
• Locate bad connectors on overhead spans
• Identify de-energized URD Primary cable in a manhole or ditch

A 6-month pilot project was conducted at a Major Investor owned Utility where the ST800 was found to save the Utility time and money while improving their Customer Satisfaction Rating.

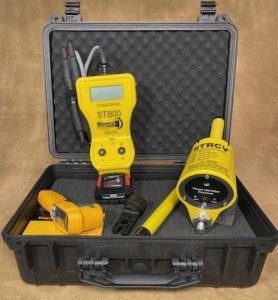

Includes:

• 800 amp service tester
• Receiver probe
• Laser pyrometer
• Alligator clip cable
• 10 inch handle
• Manual
• Standard bag
