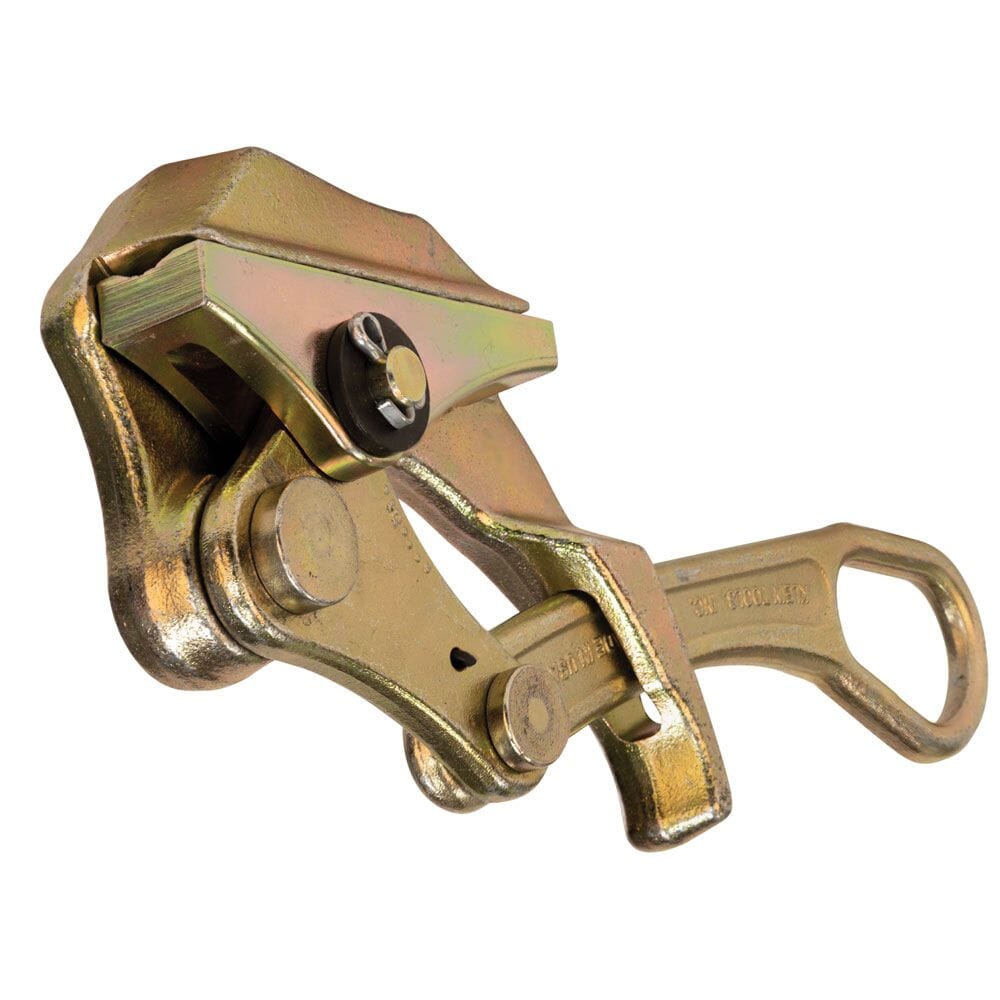

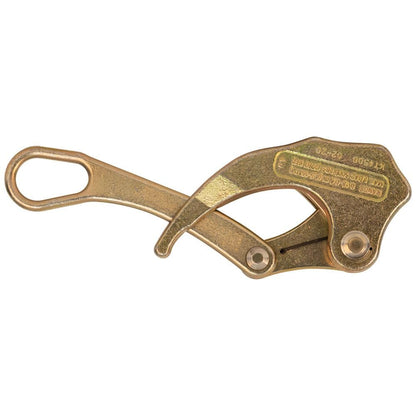

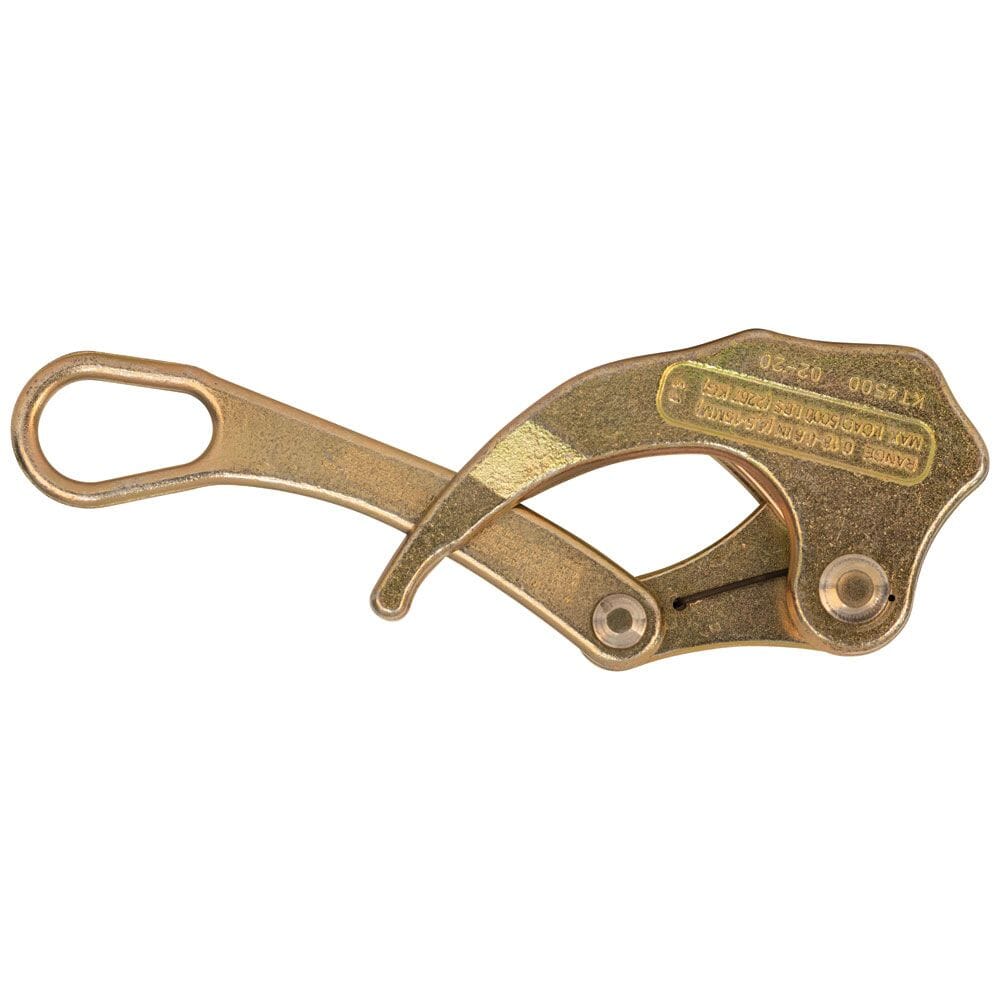

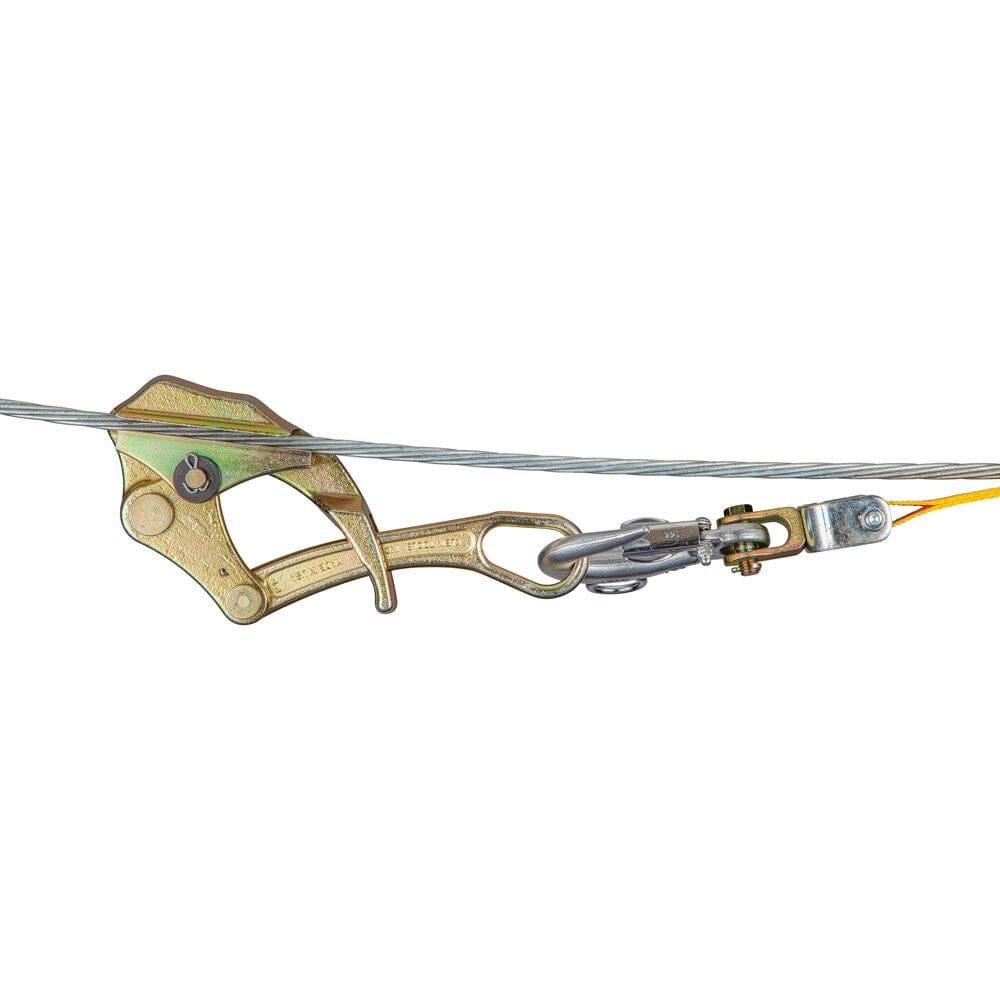

Klein Parallel Jaw Grip

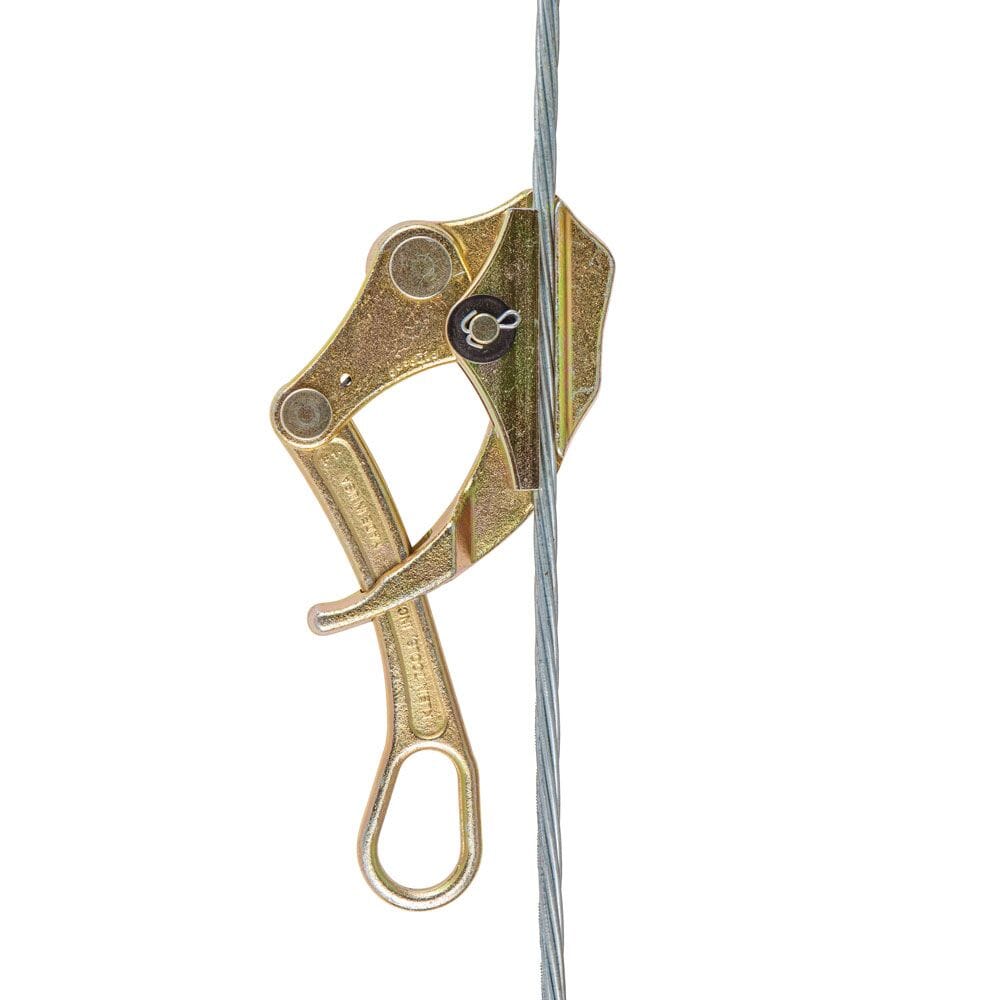

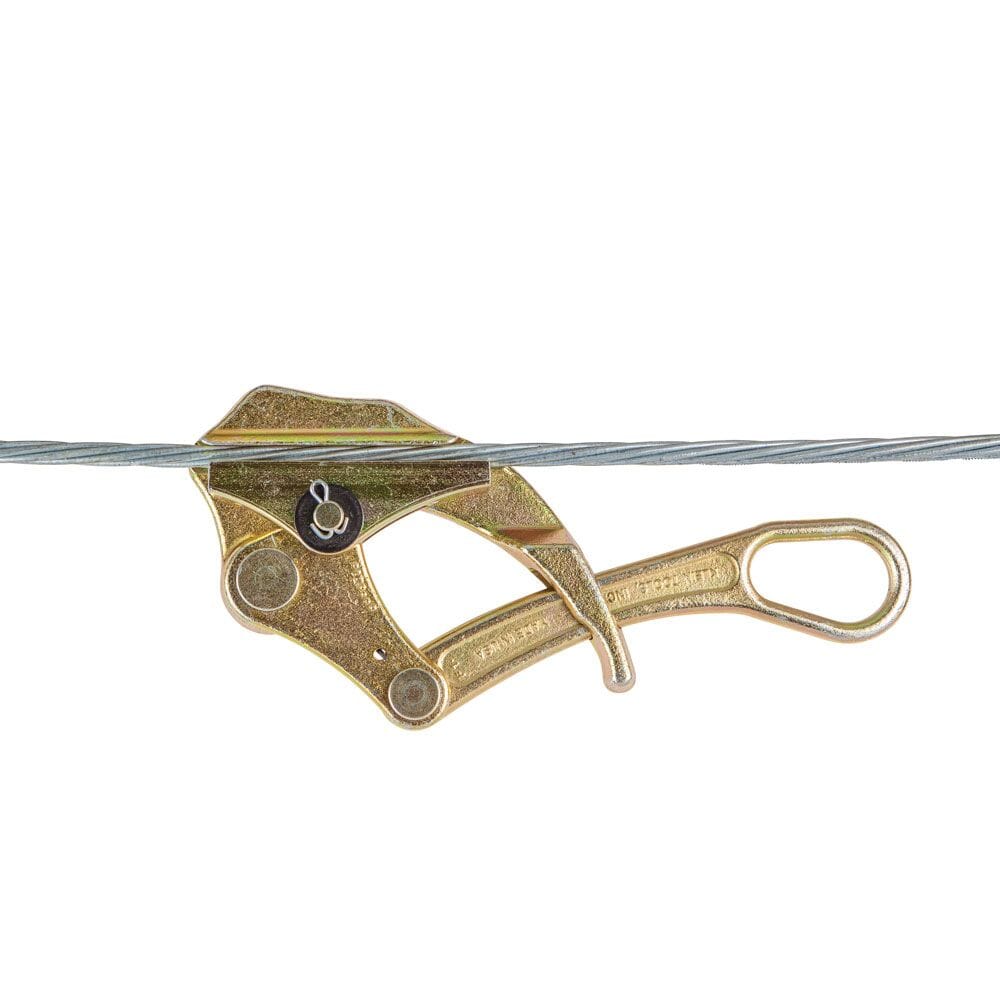

This versatile grip holds a wider range of ACSR cable sizes reducing the number of grips needed. Klein Parallel Jaw Grips are lightweight and compact. The round jaw holds 0.18 - 0.60-inch diameter cable with a maximum safe load of 5000 lbs. Features a spring that closes the grip on the cable to maintain the initial position.
Parallel Jaw Grip Specifications

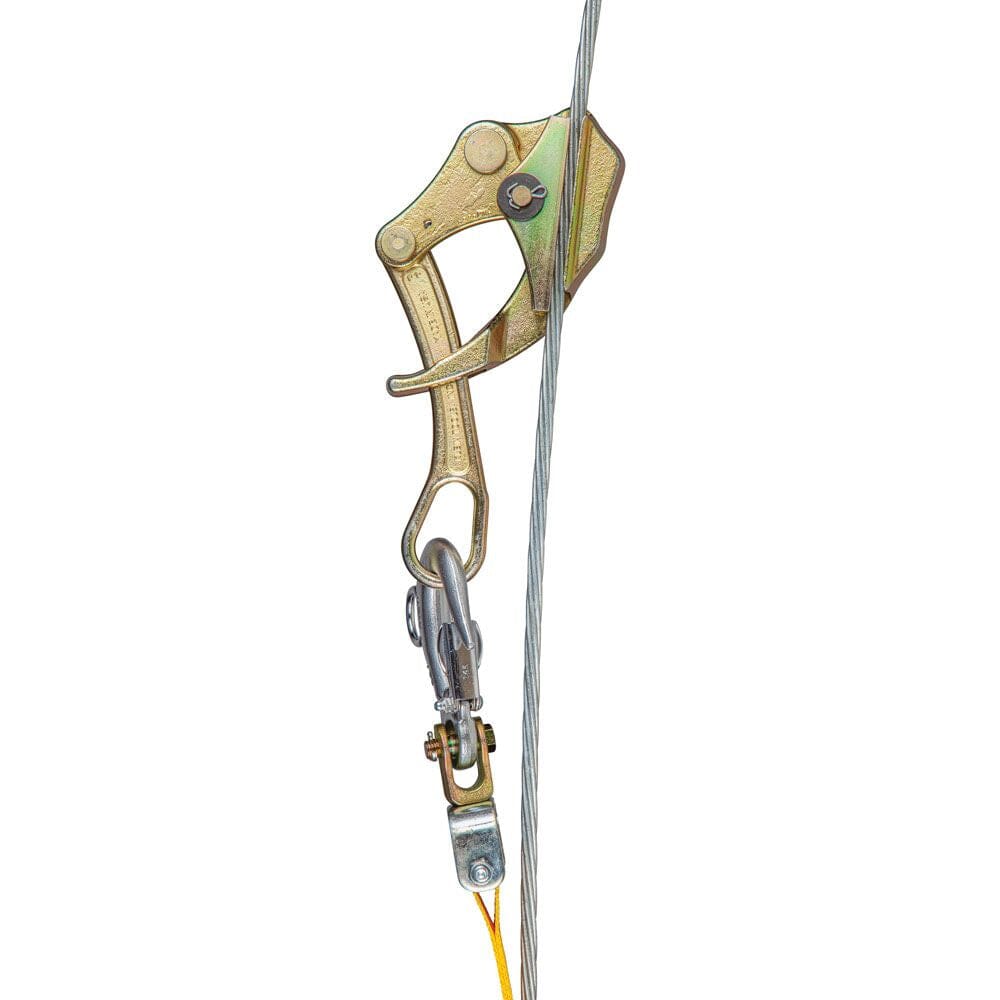

- Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
- Max Safe Load of 5000-Pound (2268 kg)
- Type: Parallel Jaw Grip
- Application: Cable Pulling
- Special Features: Sawtooth Jaw Profile Resists Build-up
- Cable Type: ACSR
- Cable Diameter: 0.18'' to 0.6'' (4.57 to 15.2 mm)
- Hot Latch: No
- Swing Latch: No
- Spring: Yes
- Locking Handle: No

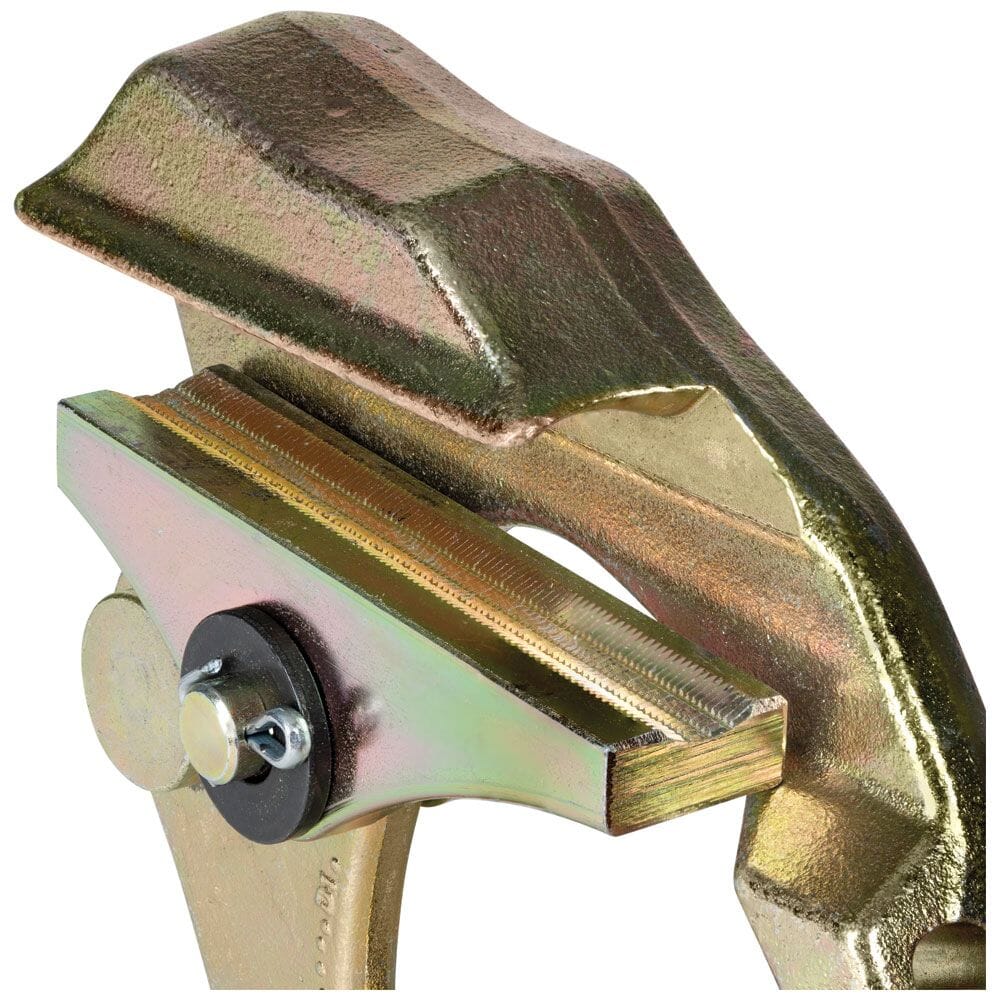

- Jaw Type: Round - Serrated
- Jaw Length: 4'' (10.2 cm)
- Maximum Safe Load: 5000 lb (2268 kg)
- Weight: 3.8 lb (1.7 kg)
